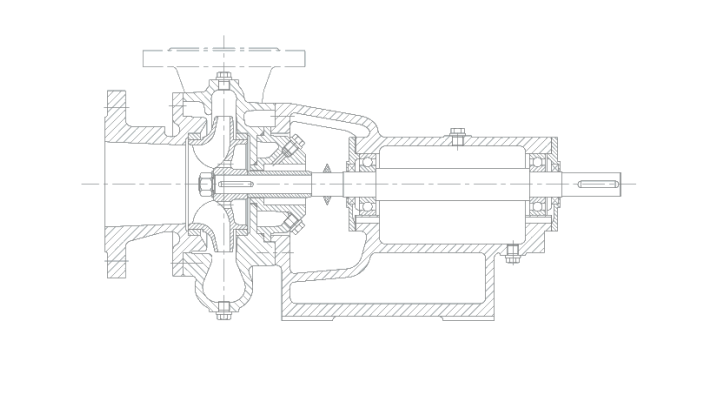

KK/KK2 - Horizontal low preassure single stage, volut casing pump

  • Q = 2 – 350 l/s
  • H = 5 – 140 m
  • p = 16 bar
  • t = 10 – 150 ºC
  • nmax = 2900 rpm
  • Katalog (.pdf)

For clean and in a greater degree contaminated water, heavy operating conditions on the suction side, circulation of hot water up to 150°C and the system pressure up to 16 bar. They are used in power plant industry, agriculture, utilities, water management and elsewhere.
